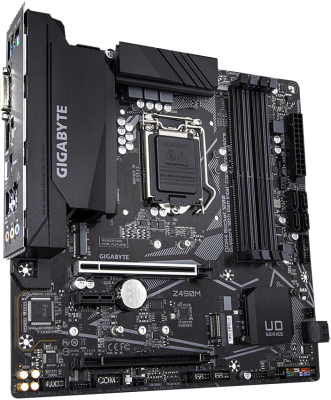

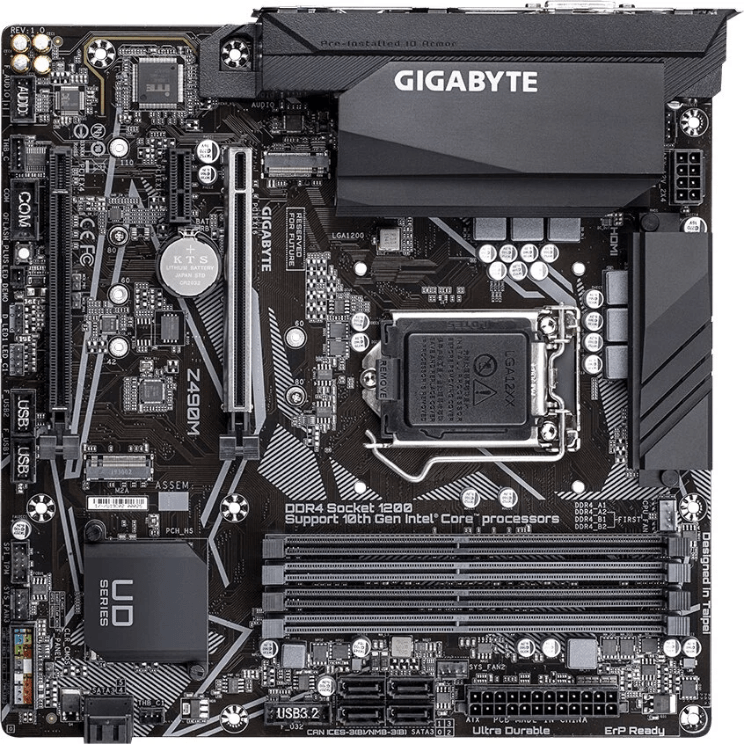

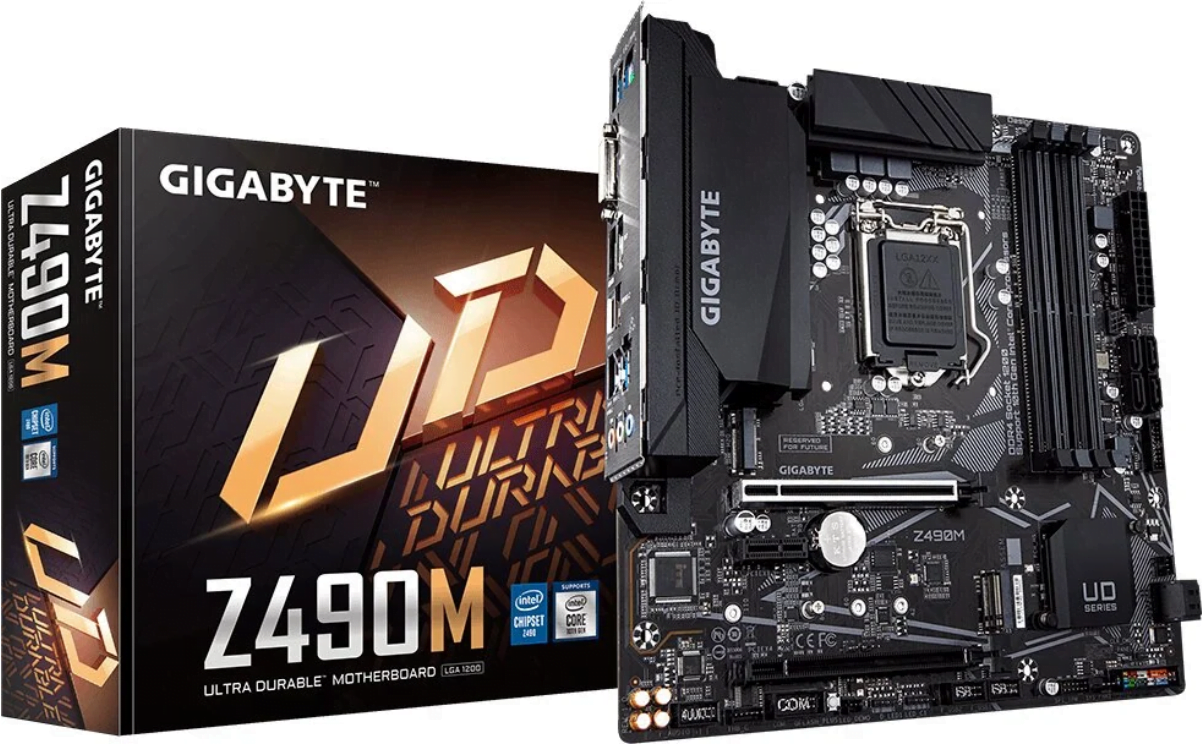

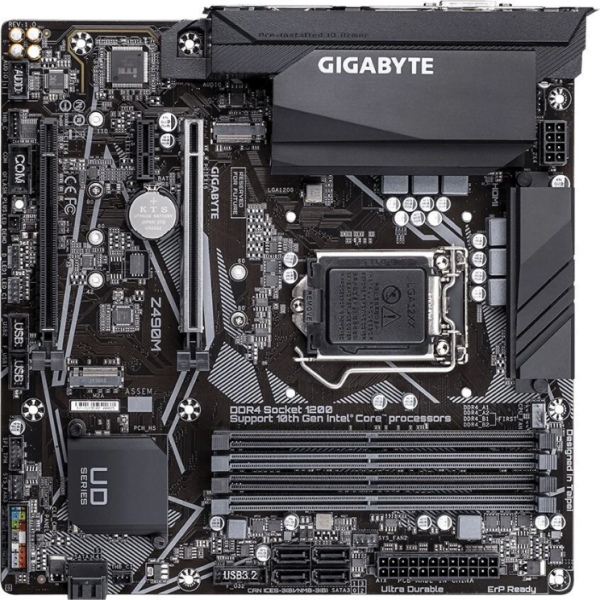

GIGABYTE Z490M

GIGABYTE Z490M

Company Gigabyte is one of the leading companies for the creation of components and peripherals for computers. She now brings you her motherboard with the label Z490M. The Intel Z490 chipset was created to support the 10th generation processors with the name Comet Lake.

Advantages of GIGABYTE Z490M

• Chipset Intel Z490 with processor support Intel 10th generation
• support AMD CrossFire
• SmartFan 5
• RGBFusion 2.0
• 1x M.2 connector for ultra-fast SSD drives

RGBFusion 2.0

With software RGBFusion 2.0, users have access to various color-selectable LED lighting settings. You can, for example, synchronize the LED lighting with your favorite music or set it to change depending on processor temperature. Once you have completed the setup, you can save it and share with others.

SmartFan 5

With a tool SmartFan 5 users can rest assured that their gaming PC will always maintain its high performance and stay that way sufficiently cooled. The Smart Fan 5 allows users to swap out their fan connectors to account for the differential effect of temperature sensors at different locations on the motherboard. And not only that, with the Smart Fan 5 they have more hybrid connectors for fans that support both voltage regulation, So PWM for the motherboard to understand better with water cooling.

Key properties

It is about motherboard with a chipset Intel Z490. It offers a socket Intel 1200 with processor support Intel 10th generation Core/Pentium Gold/Celeron. The board offers 4 DIMM slots for memory type DDR4 (dual-channel) with a capacity of up to 128 GB and by supporting frequencies up to 2933 MHz and up to 3200 MHz OC. The board offers up to 4x USB 2.0 interfaces (4x on the board), 7x USB 3.2 Gen1 (4x type-A and 1x type-C on the back panel, 2x on the board),1x USB 3.2 Gen2 (1x type-A on the back panel), 1x PS/2, 1x DisplayPort, 1x HDMI, 1x DVI-D, 1x GLAN and 3x 3,5 mm audio jack and expansion slots 2x PCI-E 3.0 x16 (x16, x4) and 1x PCI-E 3.0 x1. For hard drives, it is located on the board 6x SATA 6Gb / s a 1x M.2 connectors (SATA/PCIe 3.0 x2/x4). Supports AMD CrossFire. The board is format mATX.
