New features:
Free driver in Raspberry Pi support Raspbian, Ubuntu, Kali, win10I0T and other single touch
Free driver in computer xp (single point), win7 (some single point) win8, winl0 five point touch
Support for HDMI devices such as set-top boxes, BB black, Banana/0range pi, and car recorders
Support backlight switch control, open 400ma current, turn off 120ma current,
Support universal Android usb interface, usb voltage input does not affect, usb touch interface card off
USB touch interface supports USB touch, supports display power supply, does not affect usb voltage interface
Free driver Support for Ubuntu, Debian, Cent0S, Arch, Kali, Redhat, etc.
Specification:

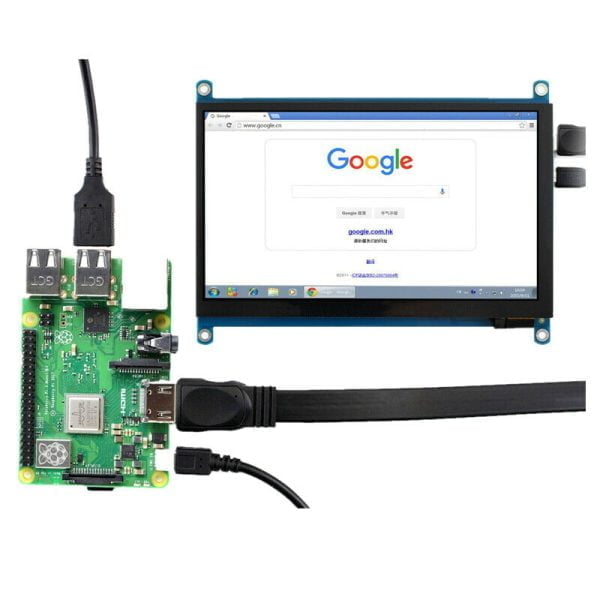

Support the Raspberry pi 3 B+
LCD display size: 7 inch

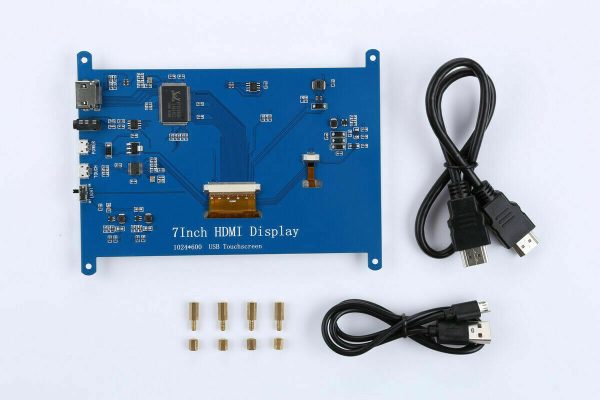

Module structure:HDMI Display + USB touch +PCB
Display resolution:1024RGBx600 pixel
Module dimensions:165.30x121x7.75mm
Active area dimesnsions:154.21×85.92mm
Pixel pitch:0.1506×0.1432mm
Color pixel arrangement:RGB stripe
Display mode:Transmissive type, Normally white mode
View direction(Gray inversion): 6’clock
LCD interface type: HDMI
CTP interface type: USB
Numbers of colors:16.7M
CTP structure type: Cover Glass + ITO Glass (G+G)
CTP structure hardness:>6H
Brightnees:200(typ) cd/m2
Contrast Ratio:300：1
Operating temperture:-20 ~70C
Storage temperture:-30~80C
Package include:

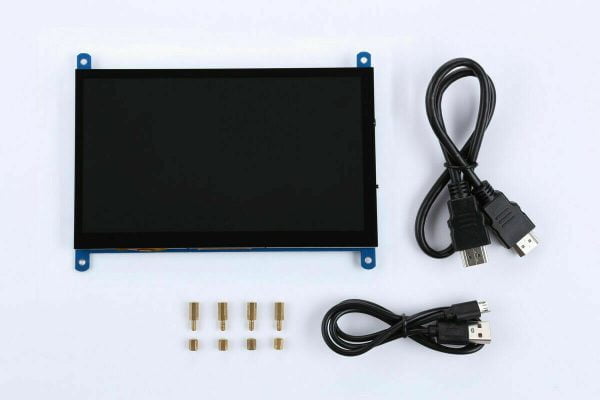

1 x 7” HDMI 1024×600 Capacitive Touch LCD Display
